Earthquake Sound Corp.

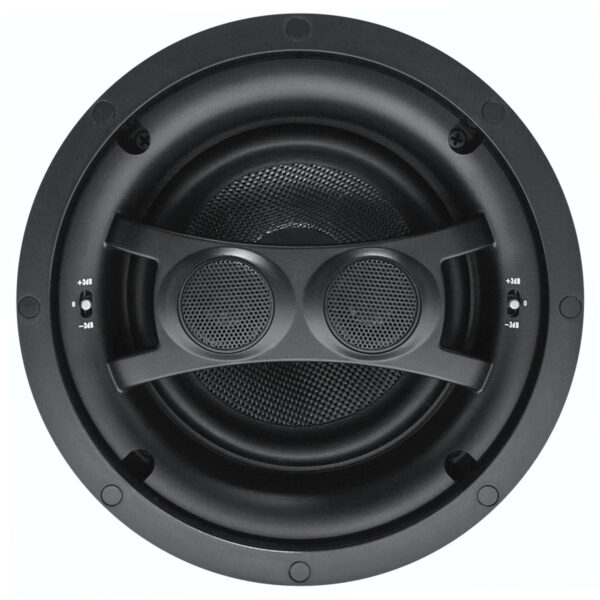

ECS6D In-Ceiling Speaker

The EDGELESS Series of In-Ceiling Speakers are also available in dual voice coil/stereo models with Dipole/Bipole and DVC/Surround selectable modes for use in limited/smaller spaces such as kitchens, hallways, bathrooms, etc.

The standard +/− 3dB adjustment switches combined with the Dipole/Bipole and DVC/Surround selectable modes further optimize the speakers’ response to match the acoustics of the room and fulfill the end user’s own personal preference.

Designed with advanced, low-mass, stiff Kevlar cones and wide surrounds, these edgeless speakers deliver deep, natural bass. Utilizing 1″ (25mm) silk dome NEO tweeters guarantees high efficiency and sonic accuracy.

Designed with aesthetics and sound quality in mind, these speakers seamlessly blend into their surroundings as they provide a lifetime of durability and high-end performance.

SKU: ECS6D Categories: ,

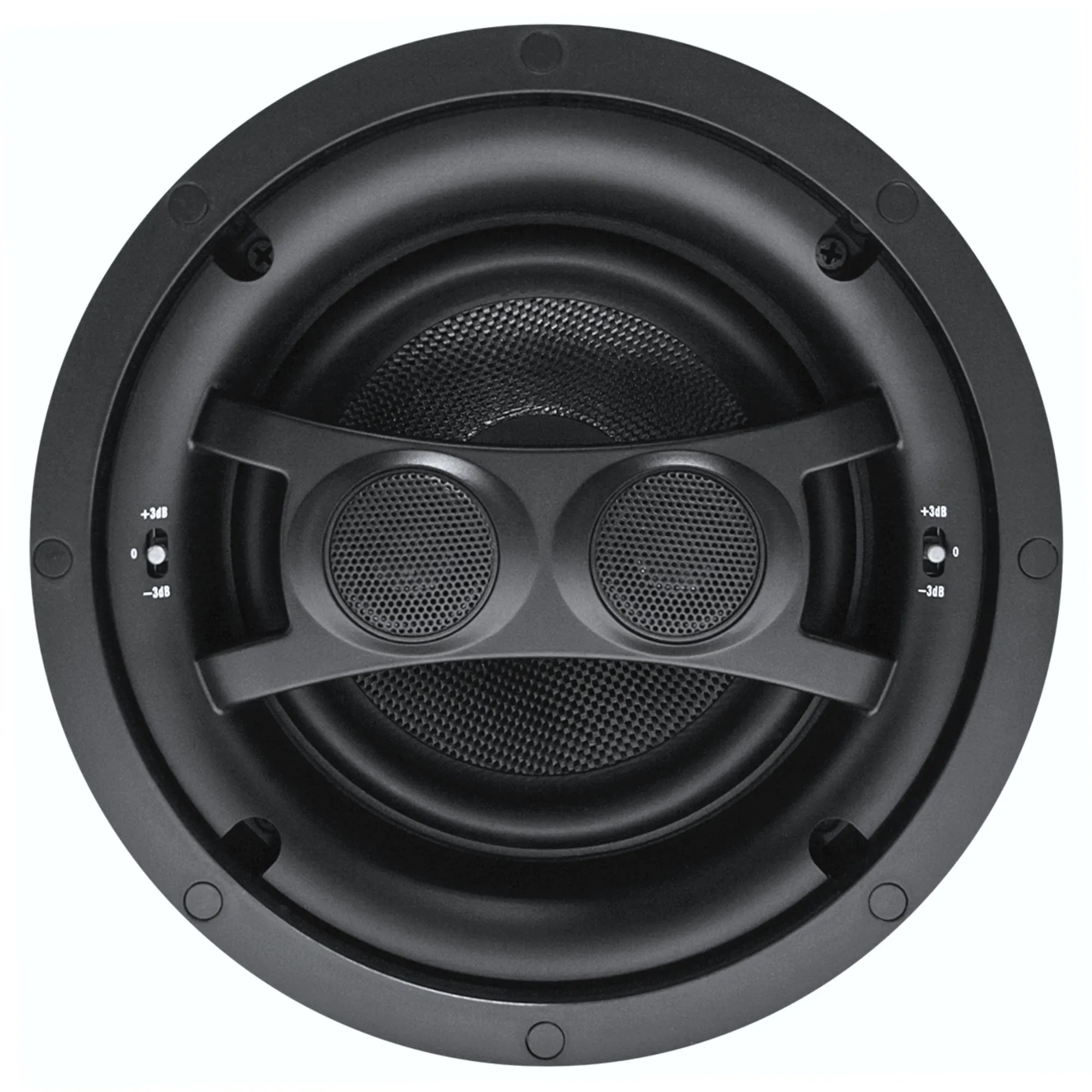

  • 6.5″ (165mm) low mass stiff Kevlar cone midbass driver
  • Dual 1″ (25mm) swiveling silk dome Neodymium tweeters
  • Frameless design for reduced visibility and seamless blend

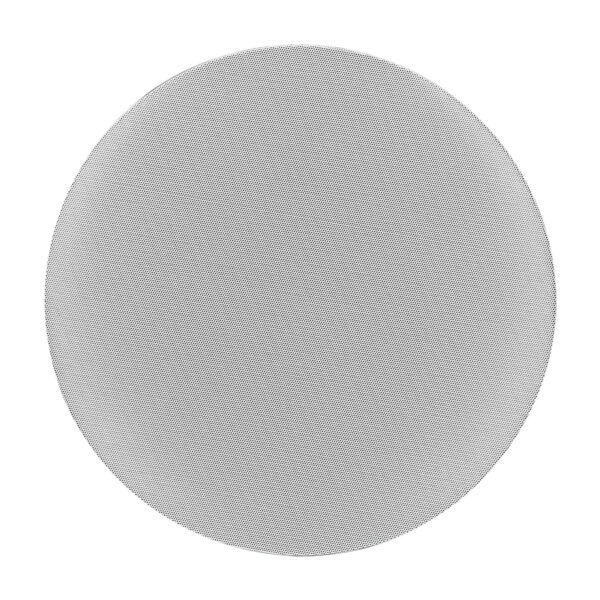

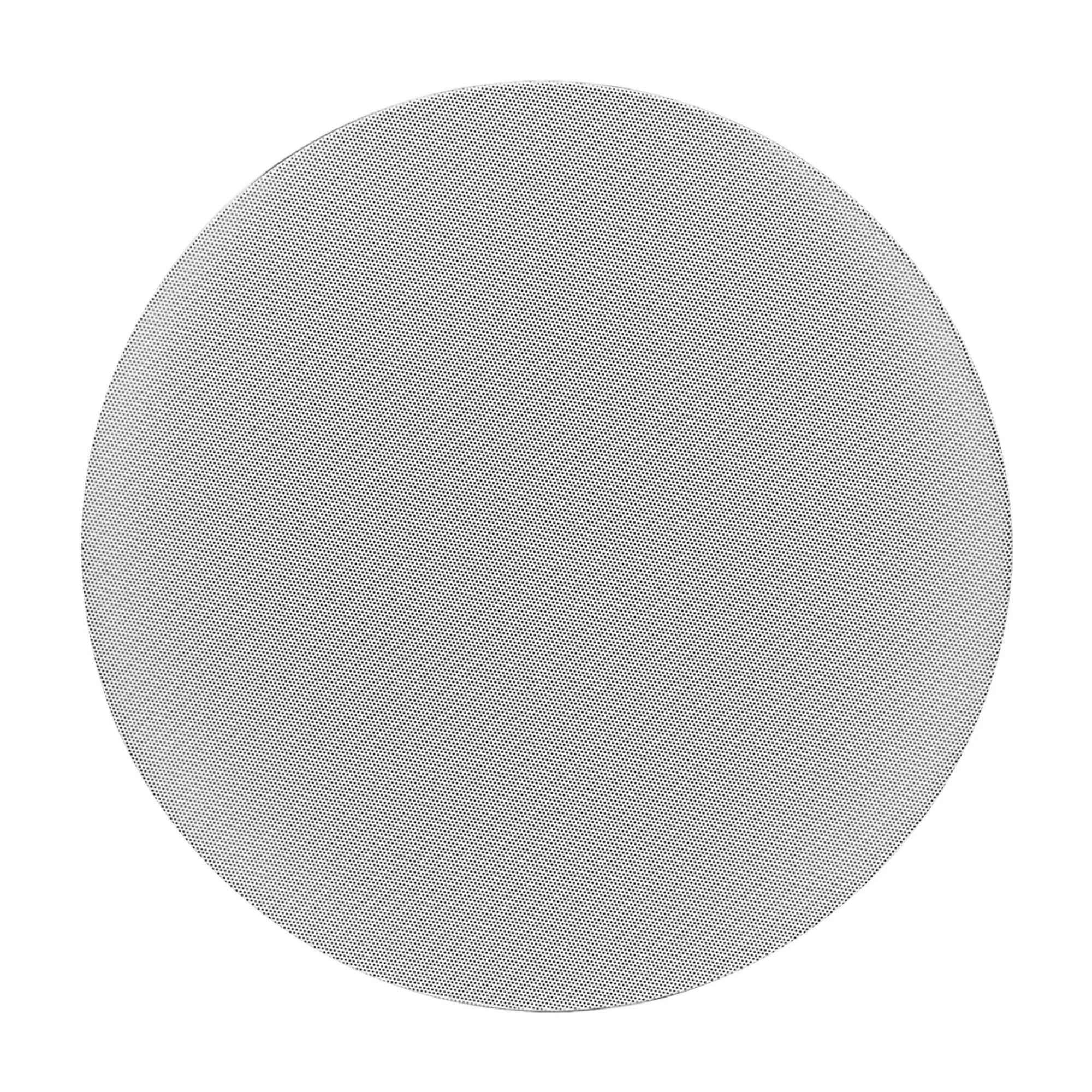

  • Round magnetically attached and paintable grilles
  • +/− 3dB bass & treble selector

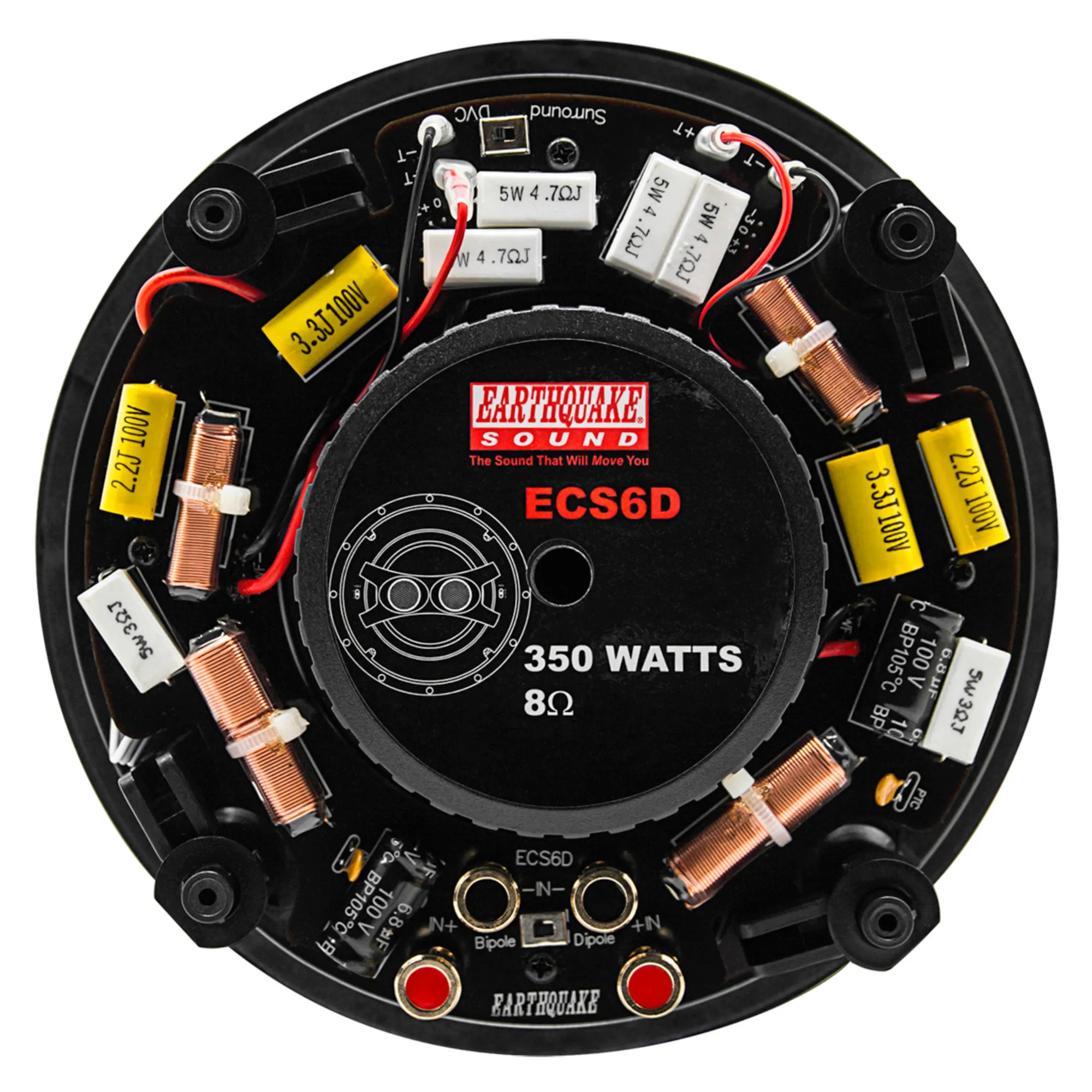

  • 12dB/Octave with polyswitch protection

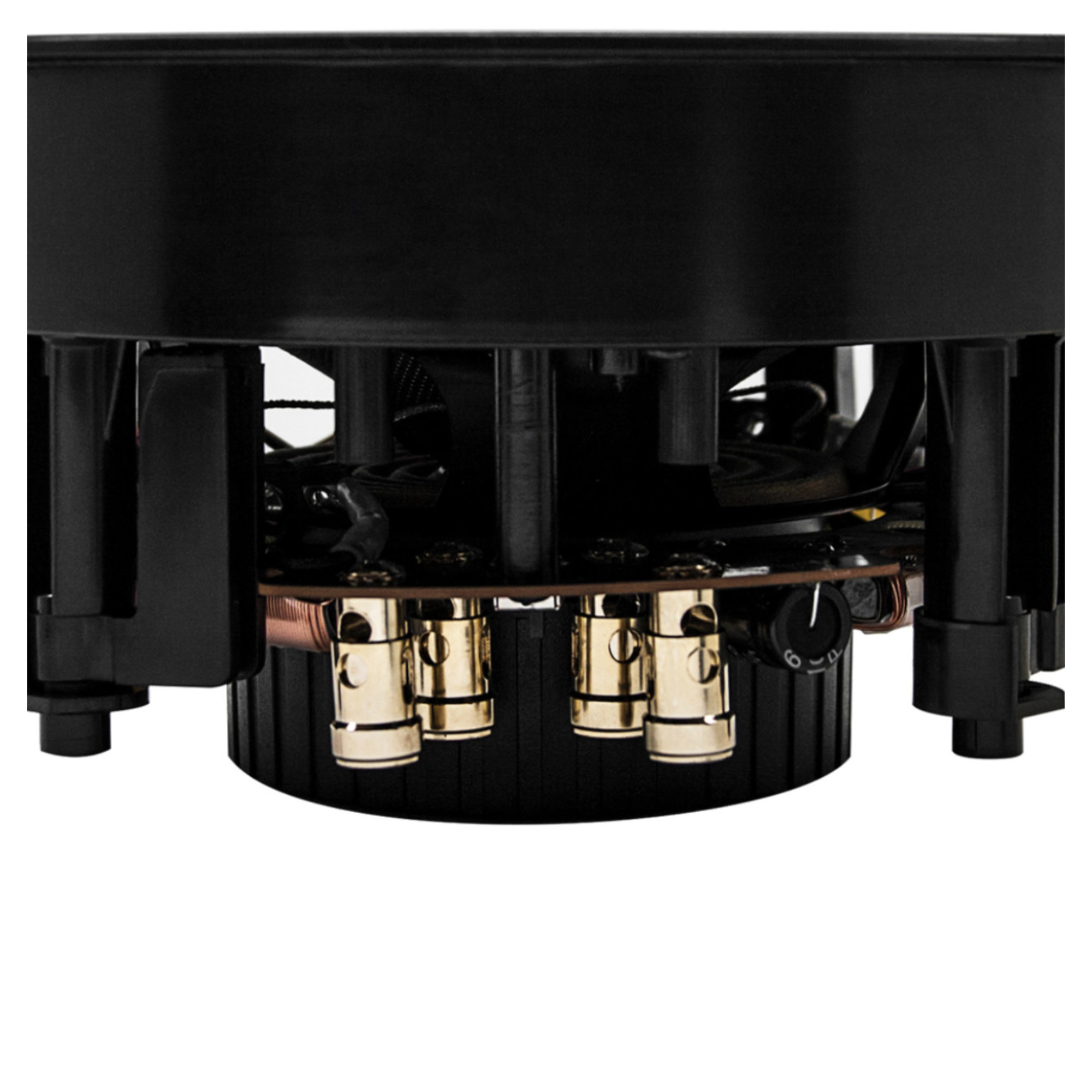

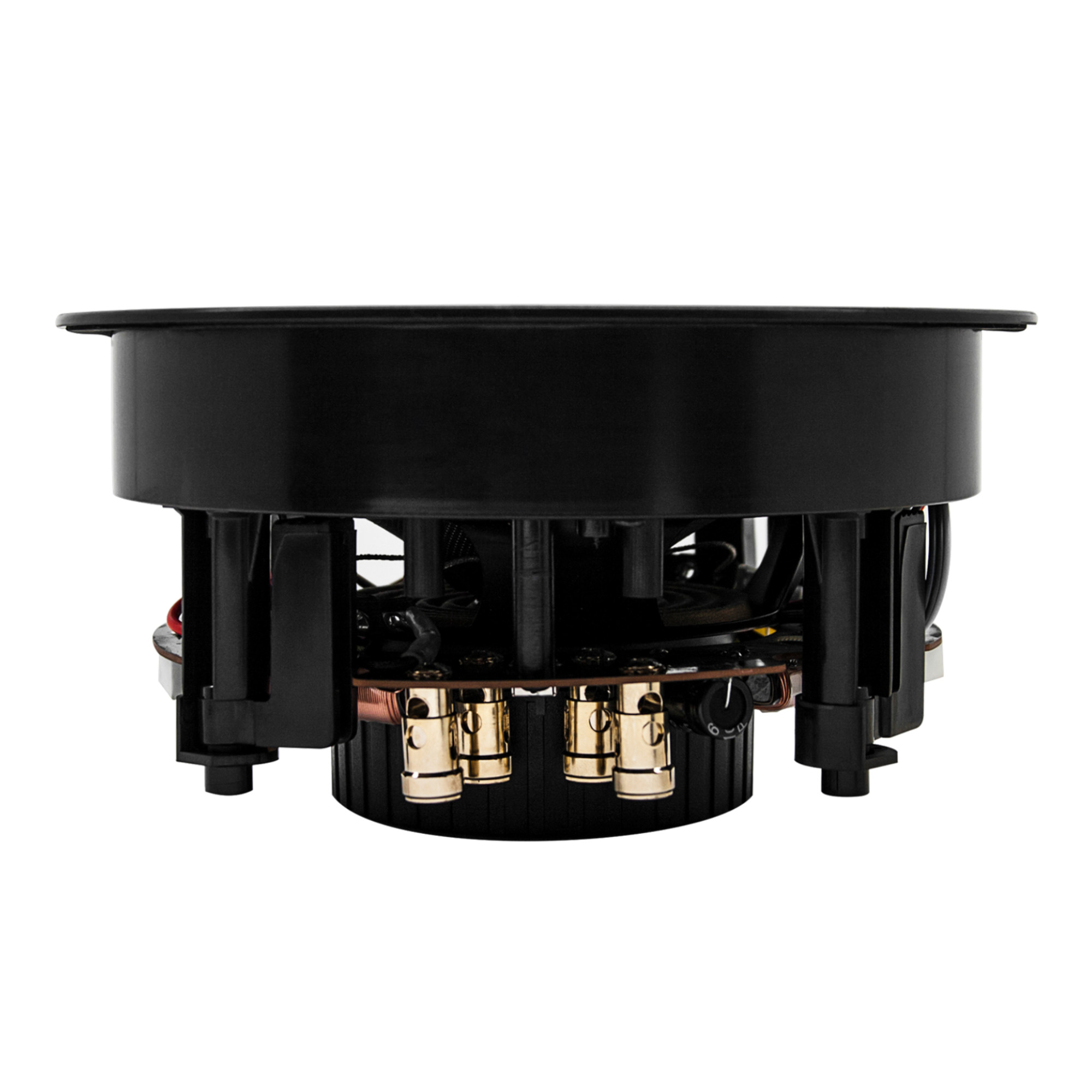

  • Gold plated spring loaded terminals
  • Easy install Turn-N-Lock™ mechanism
  • Optional square grilles sold separately
  • Compatible with the RK-C6 Rough-In Kit
  • Power Handling: 300 Watts MAX
  • Frequency Response: 40Hz–20kHz
  • Impedance:
    • Dipole Mode: 8-Ohm
    • Bipole Mode: 4-Ohm
  • Sensitivity: 87dB 1W/1M
  • Overall Diameter: 8.56″ (217mm)
  • Cut Out Hole: 7.87″ (200mm)
  • Mounting Depth: 4.31″ (110mm)
  • Weight: 4 lb (1.81 kg
  • (1) ECS6D speaker
  • (1) Speaker grille
  • (1) Cutout template
  • (1) Product manual
MSRP: $269.00/PIECE

EAN: 0068975900817
