Earthquake ECS8D: Invisible Design, Unforgettable Sound

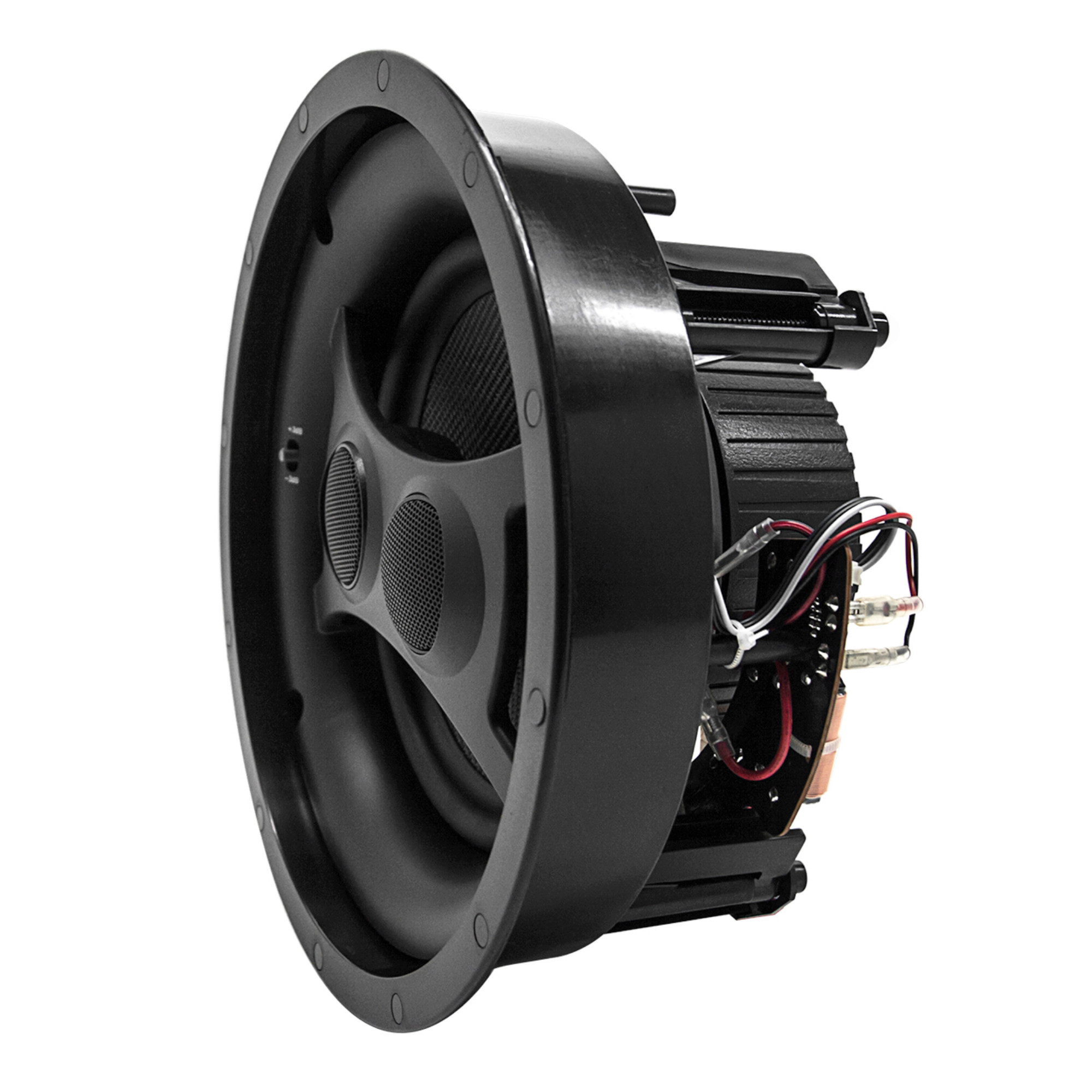

At the core of the ECS8D is an 8-inch woofer featuring a low-mass, stiff Kevlar cone. This design is known for producing exceptionally smooth, accurate, and detailed bass and midrange frequencies. Complementing the woofer are dual 1-inch (25mm) swiveling silk dome Neodymium tweeters, which deliver crisp, clear highs with outstanding sonic accuracy. Together, they achieve an impressive frequency response, ranging from 30Hz to 20kHz, ensuring full-range performance that can reproduce everything from deep bass notes to delicate treble details.
You can fine-tune your listening experience with integrated +/- 3dB adjustment switches for bass and treble, allowing you to optimize the sound for your room’s unique acoustics and your personal preferences. The swiveling tweeter enhances customization further by directing sound precisely toward the listening area.
Installation is easy thanks to the simple Turn-N-Lock™ mechanism, and the magnetically attached, paintable round grille ensures effortless integration with your decor. The ECS8D is ideal for immersive home theater systems, high-quality multi-room audio, or creating an elegant background music ambiance. Choose the Earthquake ECS8D for durable, high-end performance seamlessly integrated into your home.
Features
- 8″ (165mm) low mass stiff Kevlar cone midbass driver

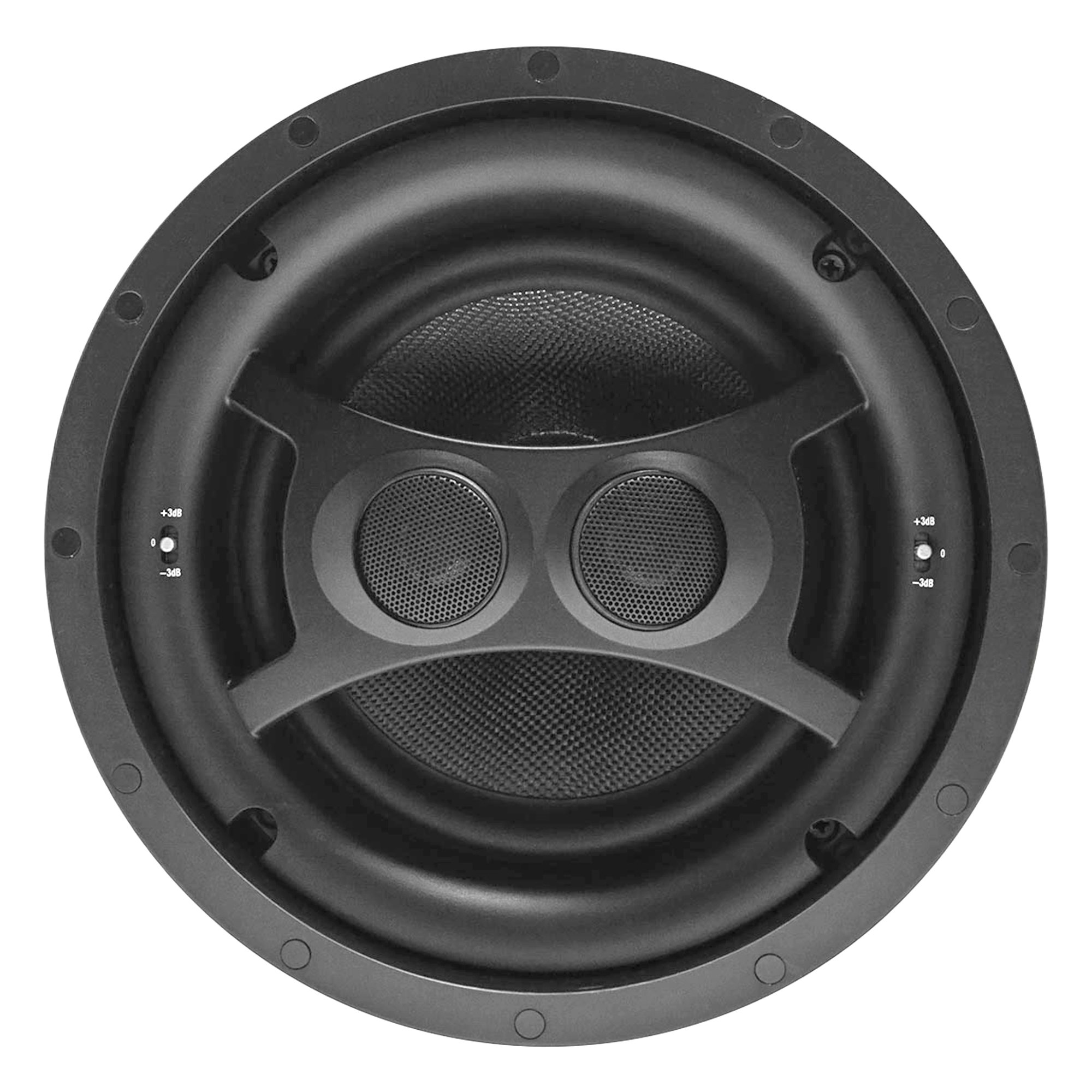

- Dual 1″ (25mm) swiveling silk dome Neodymium tweeter
- Frameless design for reduced visibility and seamless blend

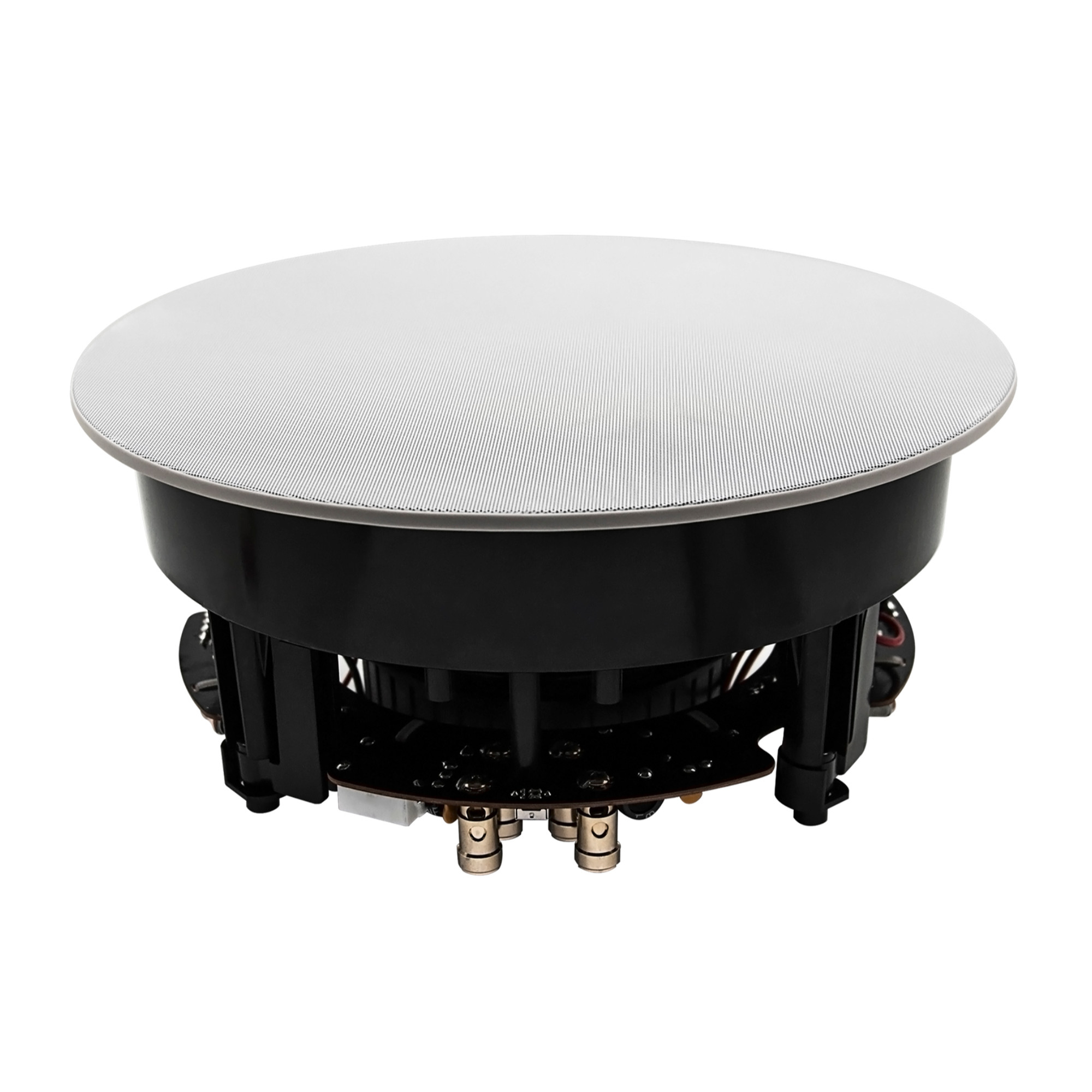

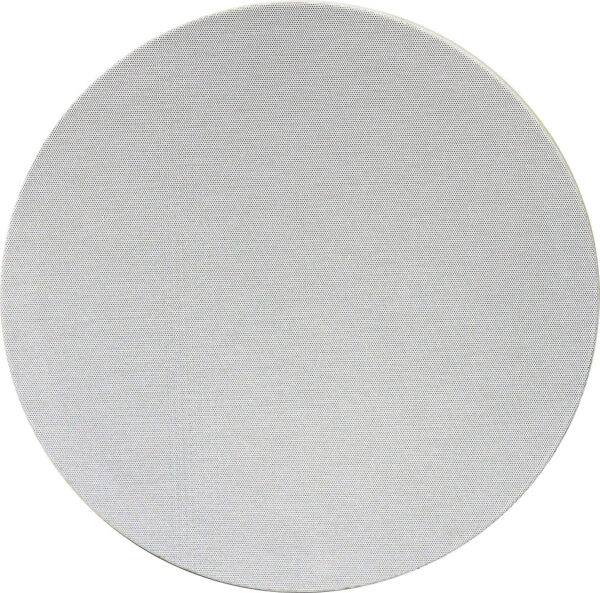

- Round magnetically attached and paintable grilles
- +/− 3dB bass & treble selector
- Dipole/Bipole mode switch
- Surround/DVC mode switch

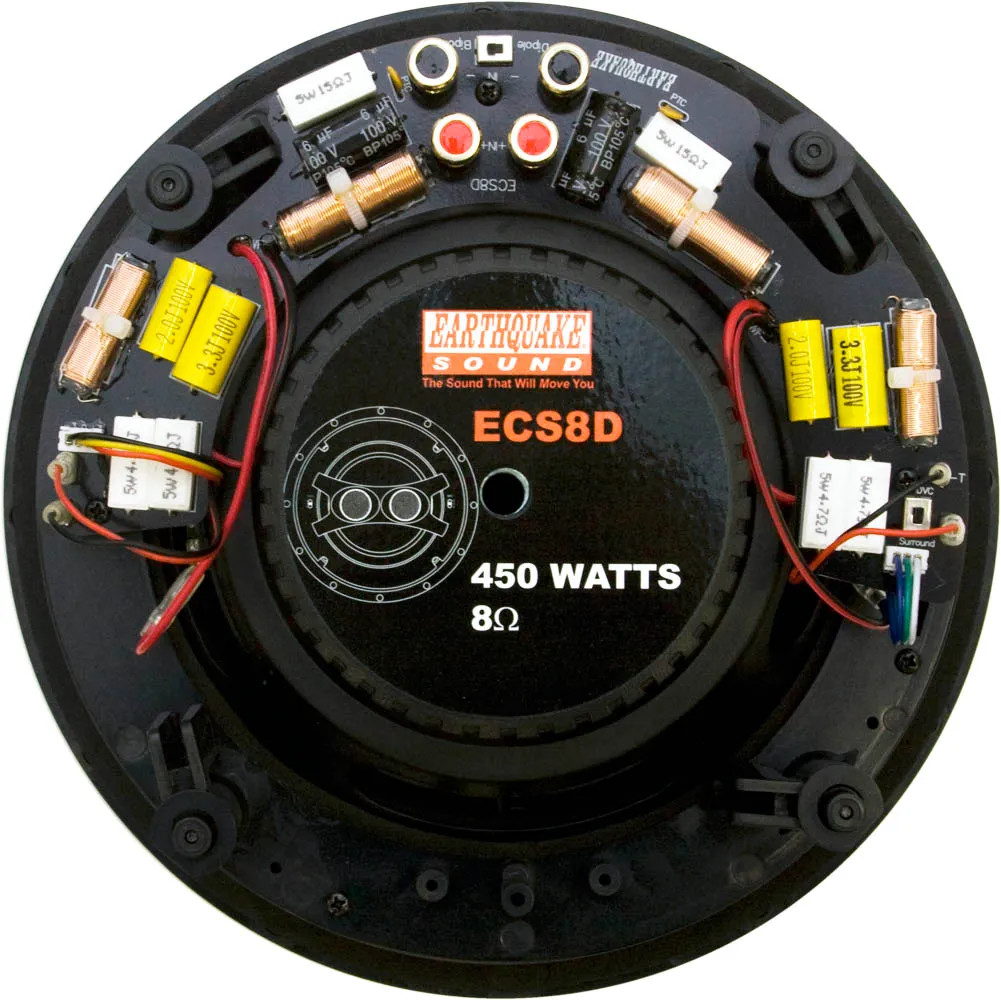

- 12dB/Octave with polyswitch protection

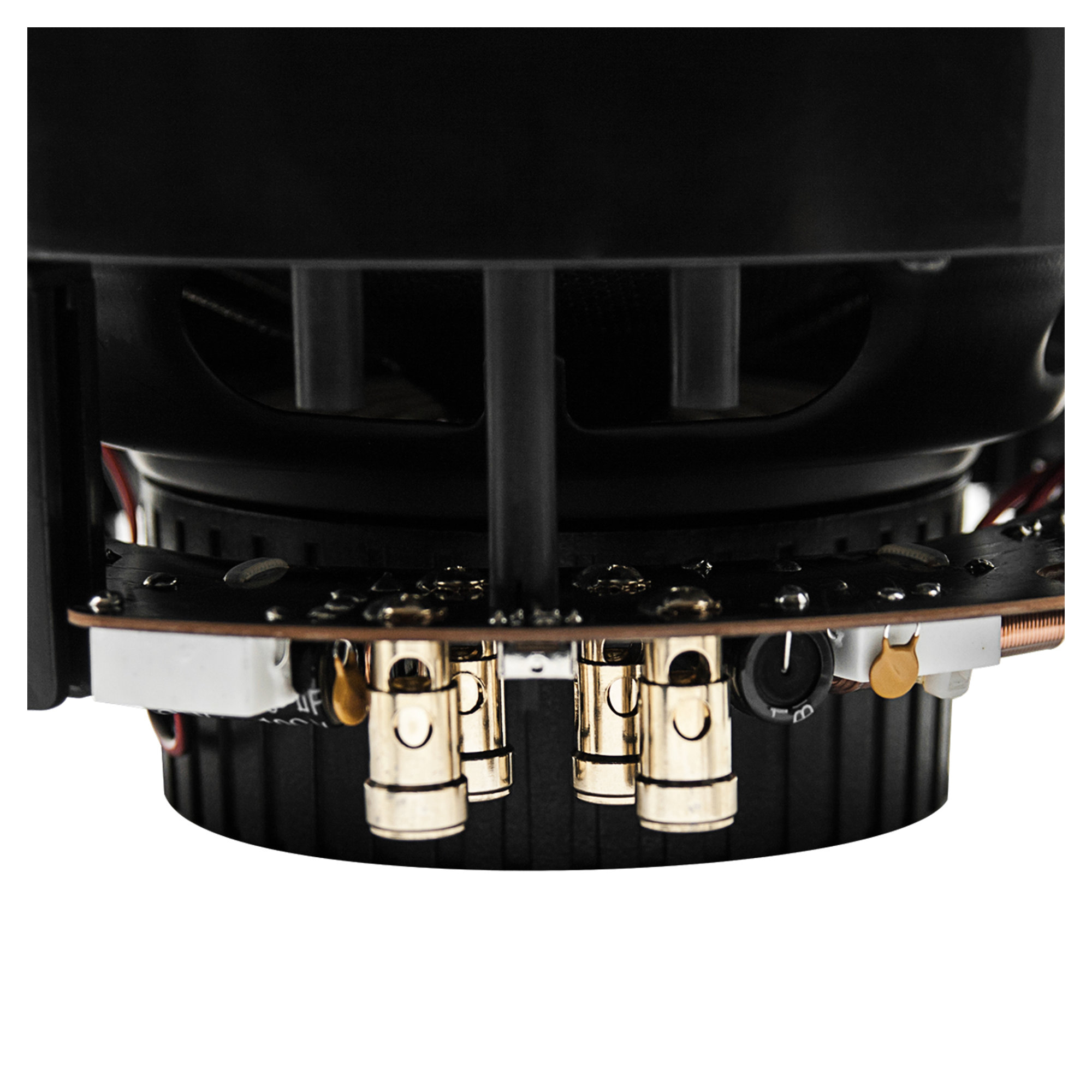

- Gold-plated spring-loaded terminals
- Easy install Turn-N-Lock™ mechanism
- Optional square grilles sold separately
- Compatible with the RK-C8 Rough-In Kit
Specifications
- Power Handling: 450 Watts MAX
- Frequency Response: 30Hz–20kHz
- Impedance (Ohms):
- 8-Ohm Dipole Mode
- 4-Ohm Bipole Mode
- Sensitivity: 88dB 1W/1M
- Overall Diameter: 10.5″ (267mm)
- Cutout Hole: 9.5″ (240mm)
- Mounting Depth: 4.87″ (124mm)
- Weight: 4.5 lb (2.04 kg)
In The Box
- (1) ECS8D speaker
- (1) Speaker grille
- (1) Cutout template
- (1) Product manual
