Features
- 12-inch high power subwoofer
- Built-in Class AB high-efficiency power amplifier
- Front-firing design with small footprint
- Single front slot port for optimized bass output
- 24dB/Octave variable low pass filter
- 0–180° phase shift

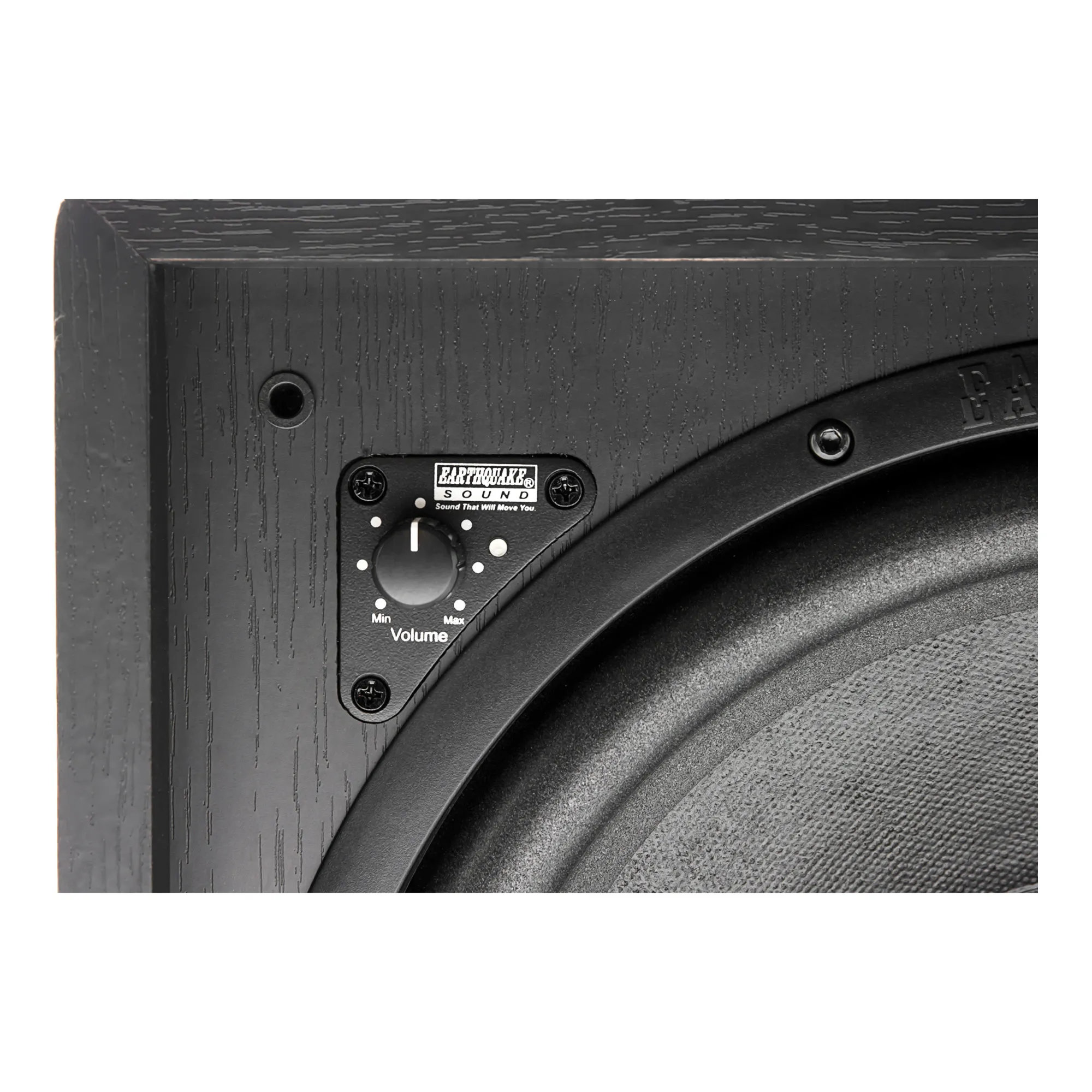

- Front mounted volume control knob
- Auto/On/Off signal detection circuitry
- Low level (RCA) & high level audio inputs
- High level inputs fitted with a high pass filter (70Hz)
- Line through RCA & high level audio outputs
- Push-style speaker terminals
- Finish: Black Ash

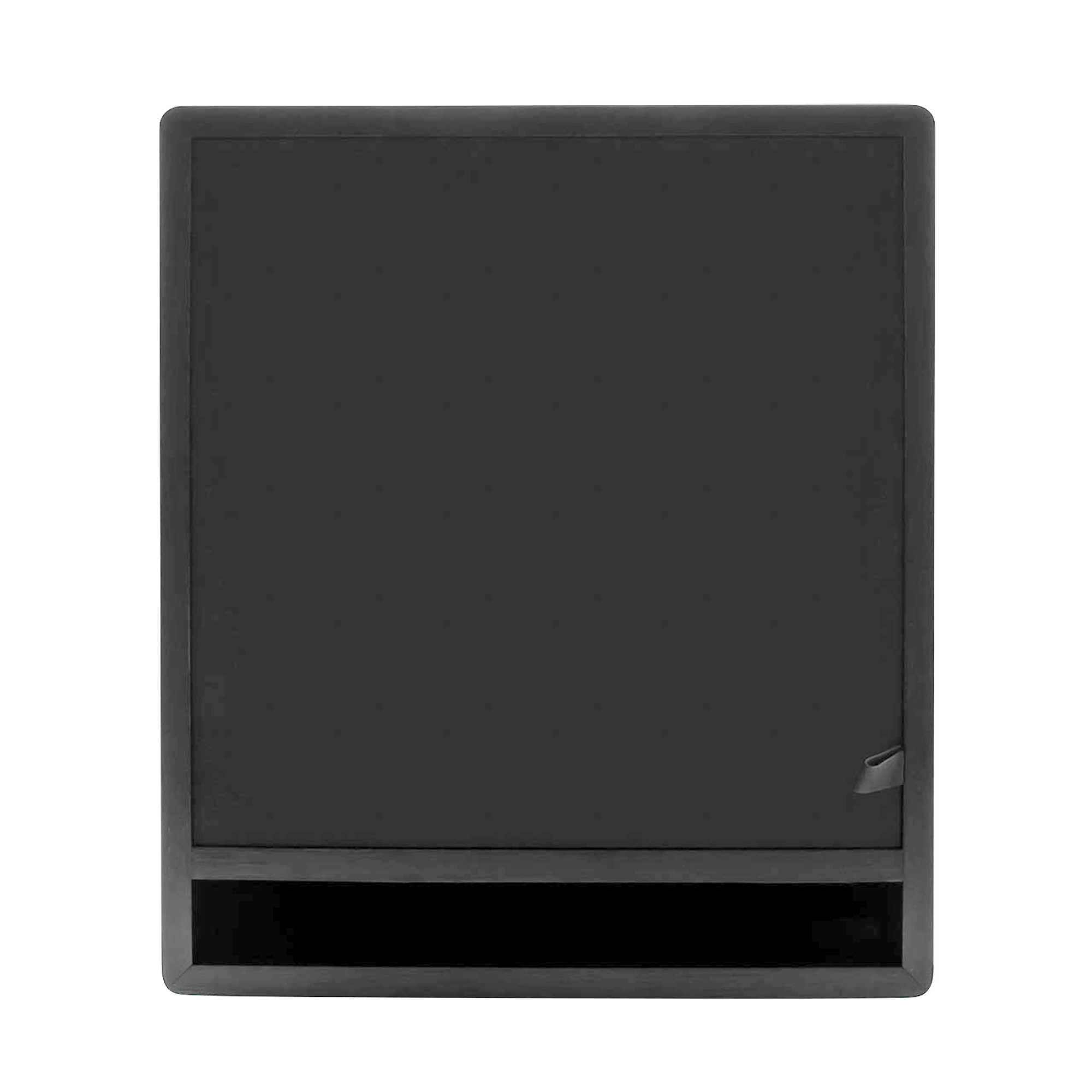

- Removable grille
- Built-in vibration-isolating feet
- Also available in 6.5-inch and 10-inch models
Specifications
- Power Output: 400W Peak
- Amplifier Class: Class AB
- Frequency Response: 25Hz–125Hz
- Crossover Frequency: 40Hz–180Hz
- Output Level: < 130dB from 25Hz–125Hz
- Includes room gain
- Voice Coil Diameter: 2 in. (50.8 mm)
- 16.92 in. (430mm) x 14.17 in. (360mm) x 15.74 in. (400mm)
- Weight: 37 lb / 16.8 kg
In The Box
- (1) FF12 subwoofer
- (1) Removable grille
- (1) Power cable
- (1) Product manual
Power and Precision: The Amplifier and Woofer Symbiosis
The FF12’s remarkable performance stems from a carefully orchestrated synergy between its amplifier and woofer, ensuring authoritative and deep bass reproduction. At the heart of the FF12 lies a robust, built-in 400-watt power amplifier with Class AB topology, often favored for its optimal balance of sonic fidelity and operational efficiency. This amplifier is not a new invention but rather a refined descendant of the signature Sub-Series from Earthquake, known for its proven, reliable design that has been honed over time.
The Slot Port Advantage: Deeper Bass, Smarter Design

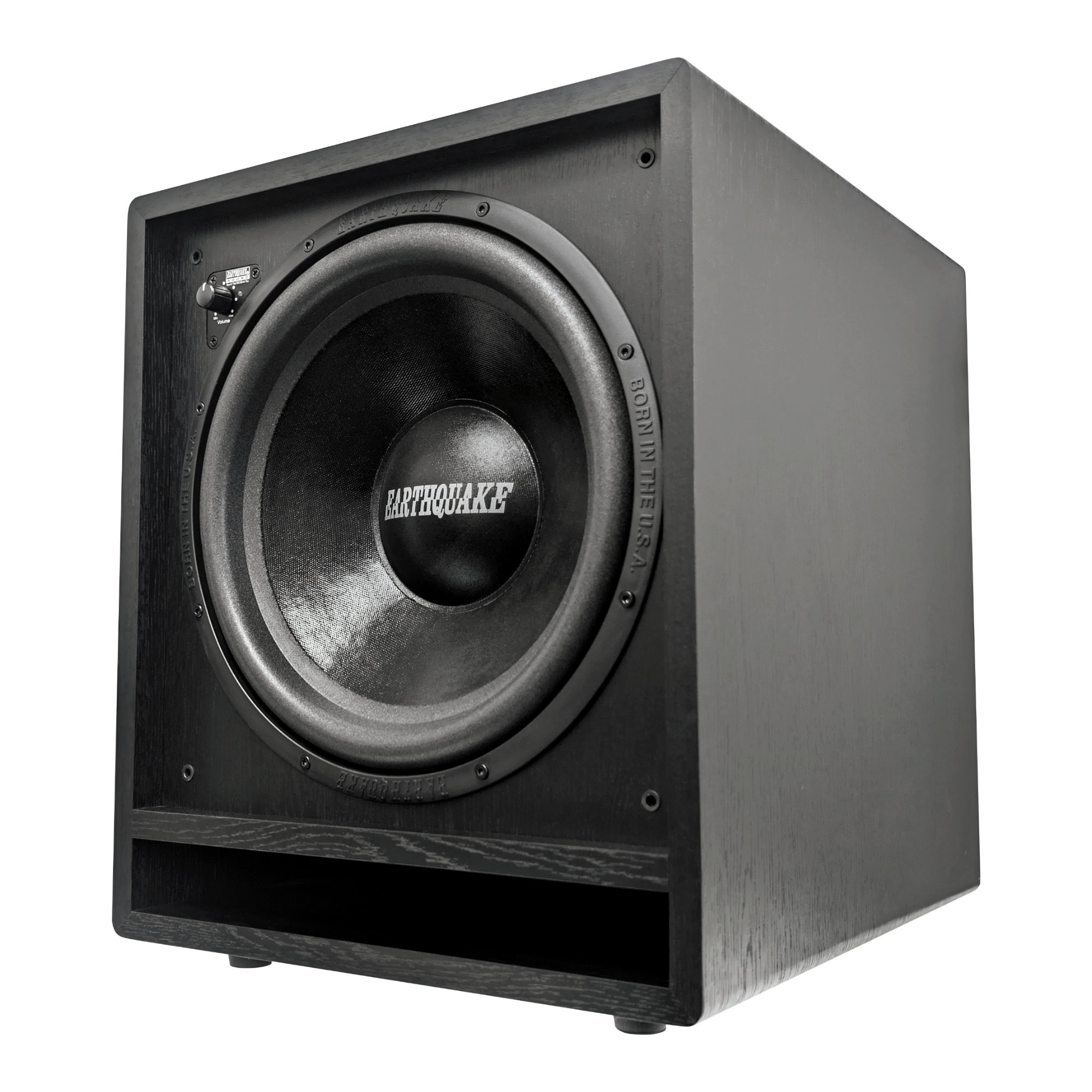

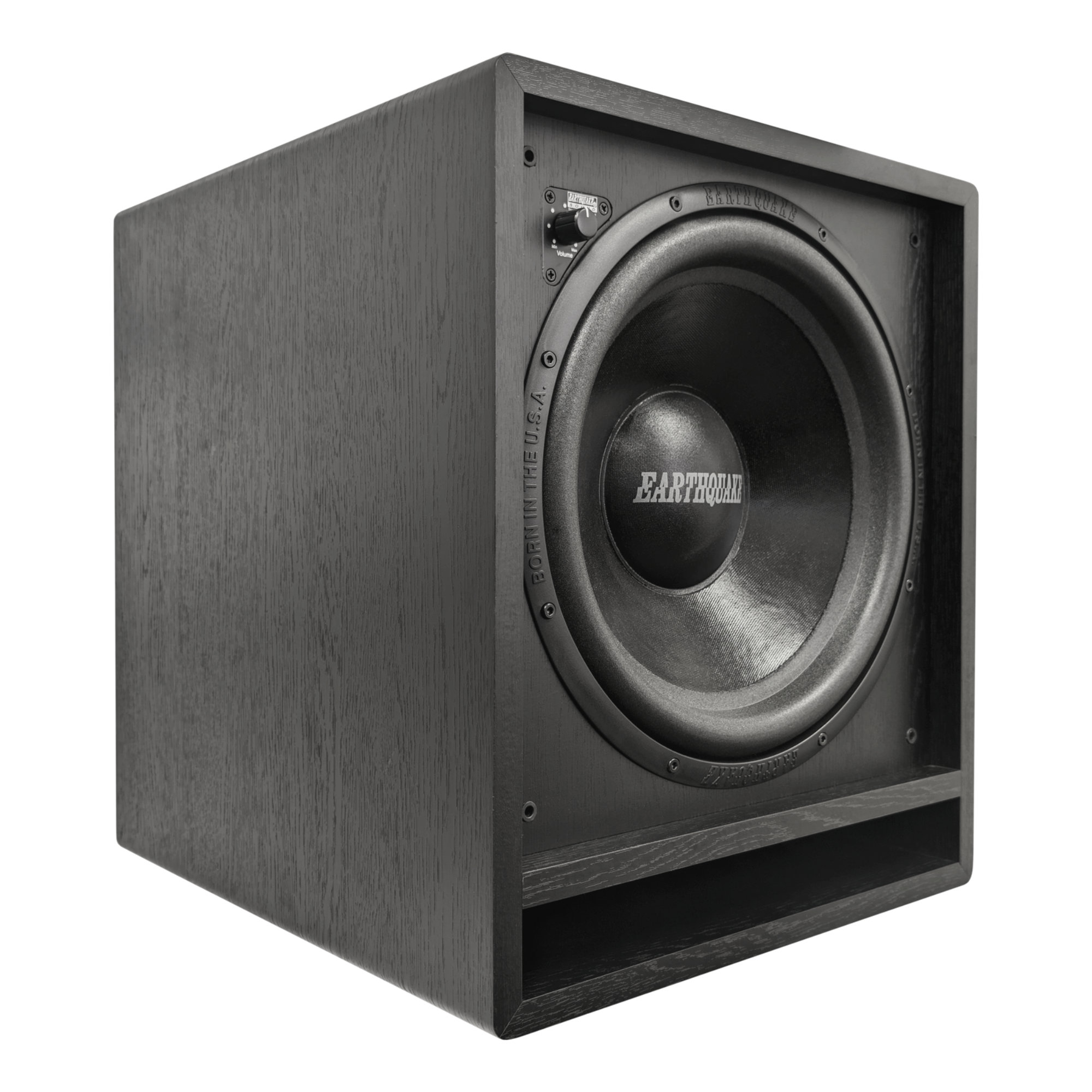

A standout feature and key differentiator for the FF12 is its advanced FEA (Finite Element Analysis) computer-modeled bass slot port design that offers more port volume than traditional tubular ports, resulting in powerful, deep bass that fills a room. Unlike bulky tubular ports, the slot port can bend at optimal angles, allowing for a smaller cabinet size without sacrificing performance or aesthetics. This design also directs airflow across specially shaped internal heat exchangers, enabling the subwoofer to maintain high output without overheating. The cooling system ensures long-term reliability and prevents thermal compression during demanding playback. Additionally, the slot port acts as a cross brace, enhancing the cabinet’s strength and eliminating resonance. This rigid, non-resonant construction minimizes unwanted vibrations, ensuring that the sound produced is clean and pure.
The slot port is more than just an air opening; it represents a comprehensive engineering solution. Its multi-functional design impacts acoustic output, cabinet dimensions, visual appeal, amplifier cooling, and structural integrity. Instead of addressing issues like port noise, cabinet size, or thermal management individually, Earthquake engineers have created a single, integrated feature that tackles these challenges together. This meticulous approach enhances the FF12’s remarkable combination of price and performance, making it a product that exceeds the sum of its parts.
Universal Compatibility: Connecting to Any System

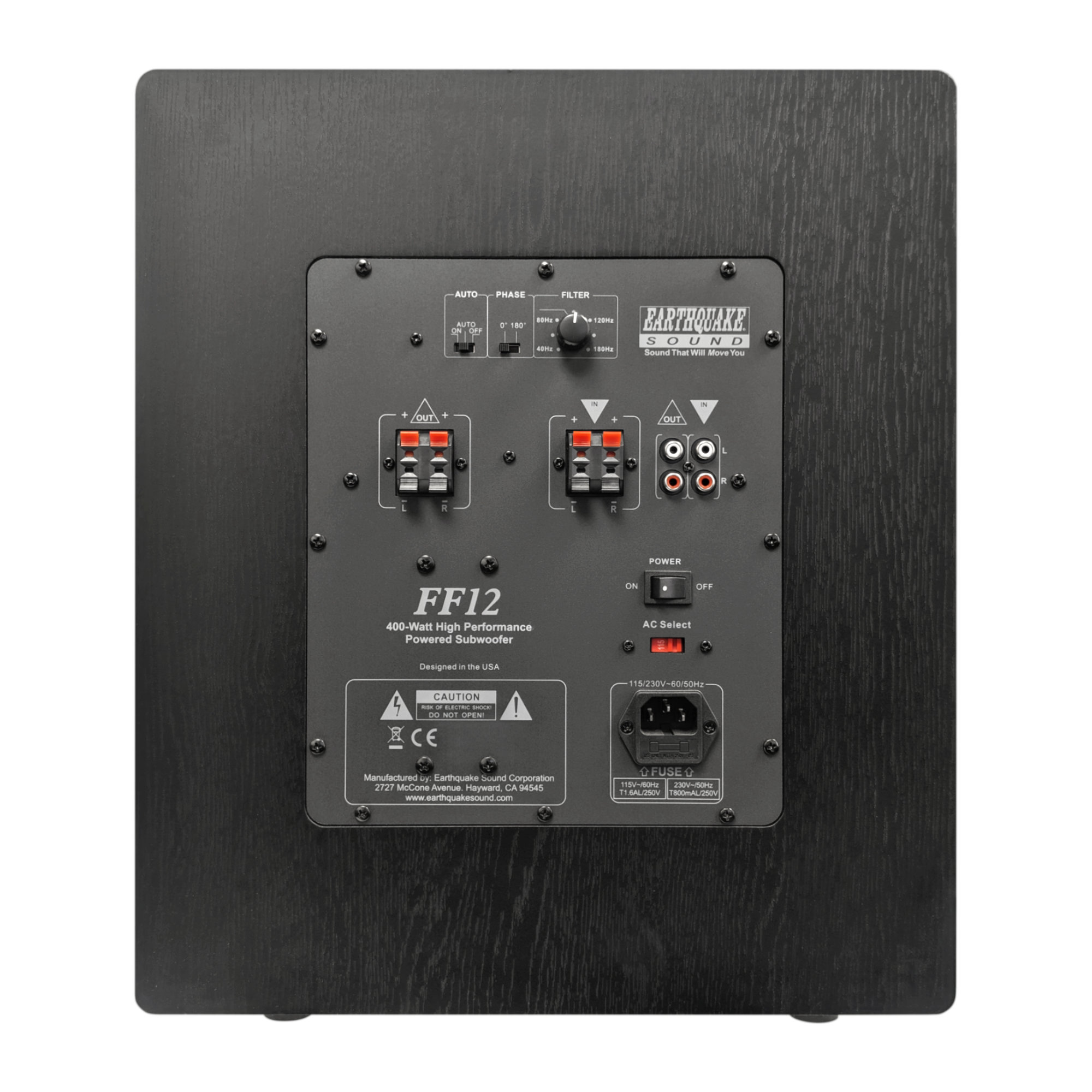

The FF12 is user-friendly and compatible with many audio setups. It has low-level (RCA) inputs, standard for modern AV receivers with Subwoofer/LFE outputs. If your pre-amplifier has only one Sub/LFE output, use a Y cable to connect it to the FF12 for a stronger signal. The FF12 also features high-level (speaker) inputs for older stereo amplifiers without dedicated subwoofer outputs. You can connect a wire from a front speaker to the subwoofer for an easy setup. Additionally, the FF12 includes Line Through (RCA) and Full-Range Speaker Level Outputs for connecting multiple subwoofers or sending audio signals to other speakers. The RCA line output also has a high-pass filter set at about 70Hz.
